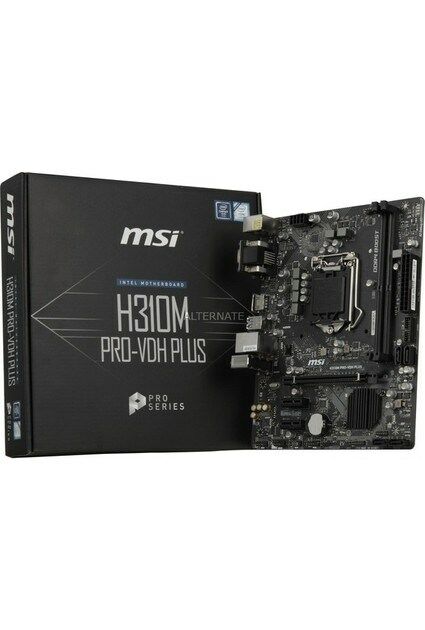

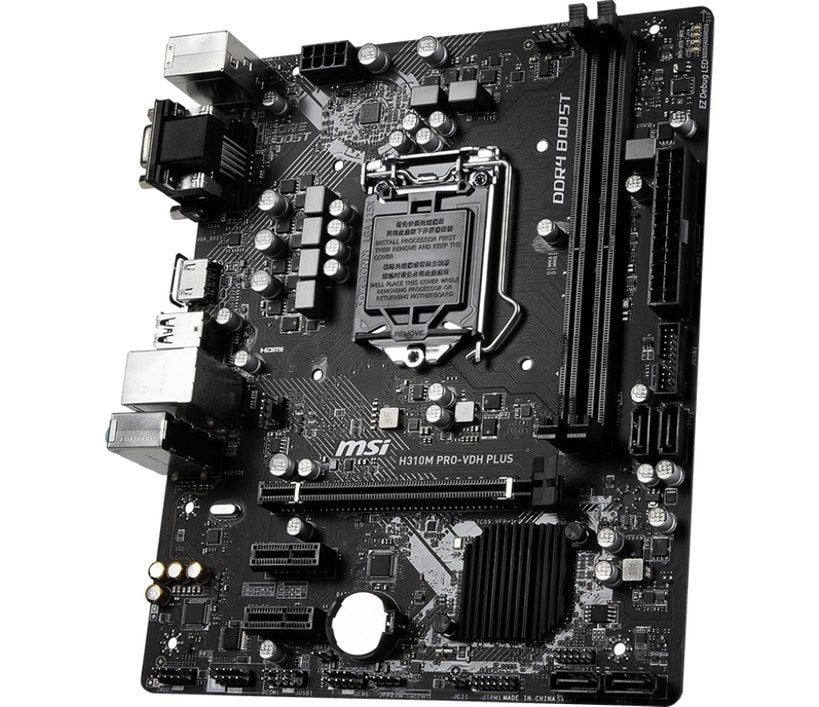

H310M PRO-VDH PLUS Soket 1151 DDR4 2666 DVI VGA HDMI USB3.1 mATX WIN7 WIN10 Anakart
-
Processor
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Chipset1
- This chipset is ME11 firmware based and doesn't feature SDA3.0.
-
Intel® H310 Chipset
This chipset is ME11 firmware based and doesn’t feature SDA3.0.
Memory
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1
- Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)1
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- 2666 MHz for I7 and I5 processors only.
-
Slots
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 2.0 x1 slots
-
Onboard Graphics
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H
-
*No Display support when using the Processor model with suffix “F”
- Supports up to 2 displays simultaneously.
-
Storage
Intel® H310 Chipset
- 4 x SATA 6Gb/s ports
- Supports Intel® Rapid Storage Technology
-
USB
Intel® H310 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
-
Audio
Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
-
LAN
- 1 x RTL8111H Gigabit LAN controller
-
Internal connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x Clear CMOS jumper
- 2 x Front panel connectors
- 1 x Serial port connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Front panel audio connector
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
-
Back panel ports
- PS/2 Combo Port
- VGA Port
- HDMI™ Port
- USB 3.1 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D Port
- USB 2.0 Port
-
Dimensions
- 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
- m-ATX Form Factor
-
Mounting
6 mounting holes
Operating System
Support for Windows® 10 64-bit
Box content
